Description

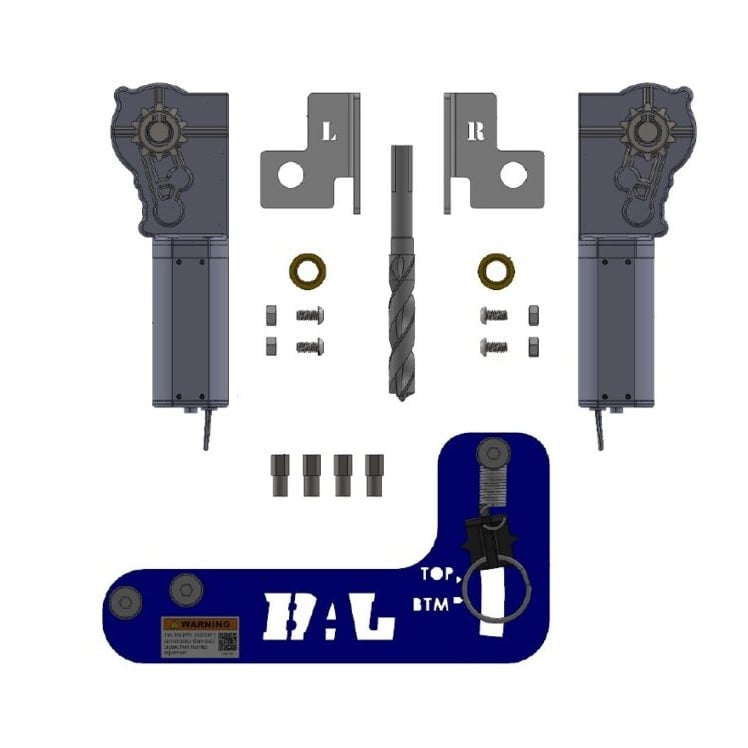

BAL G5.5 Extended Shaft and Bushing Motor Retrofit Kit 21700292
Designed To Fit G5.5 Slide Out Systems.
Retrofit Kit Includes: everything needed to replace both left and right motors with the updated extended-shaft design and matching bushings. KIt replaces motors (including R25078 and R25079) and includes both bushings, motors, drill templates, and a tension gauge
- (1) Quick Guide Instruction Sheet
- (1) Extended Shaft Right Hand Motor
- (1) Extended Shaft Left Hand Motor
- (1) Right Hand Drill Template,
- (1) Left Hand Drill Template
- (1) Tension Gauge
- (2) Bushings)
- (4) 1/4″ Hex Nuts
- (4) Machine Screws
Includes the following Part Numbers
R25078 – Right Hand Top Mount or Left Hand Bottom Mount Motor with 12 Tooth Sprocket
R25079 – Left Hand Top Mount or Right Hand Bottom Mount Motor with 12 Tooth Sprocket
21900004 -Right Hand Top Mount Mount Motor with 10 Tooth Sprocket
21900005 – Left Hand Top Mount Mount Motor with 10 Tooth Sprocket
BAL RV PRODUCTS GROUP manufactures quality products for the RV industry, such as slideouts, trailer frames, chassis components, leveling/stabilizing jacks, tongue jacks, wheel chocks.
